Hi learner friends, Thanks for coming here on another article! Today we are going to discuss an important topic in the world of fluid systems and industrial design: centrifugal pump suction and discharge piping. This topic is essential for any engineer or technician working with pumps, as the design of both suction and discharge piping plays a critical role in the overall performance, reliability, and efficiency of a centrifugal pump. We’ll explore what good suction and discharge piping design looks like, why it’s necessary, and cover common design mistakes. Towards the end, I’ll also share some recently asked questions from my students along with the answers.
Table of Contents
For better understanding, I have also added one example that is referenced throughout the article under each section.
Example: Suppose we want to design a centrifugal pump for transferring water from an underground tank to an overhead tank. The suction line is 4 inches in diameter and the pump suction nozzle is also 4 inches. To ensure proper suction, we use a straight run of pipe 20 inches long (5x the diameter) before the suction flange, install an eccentric reducer (flat side up), and avoid placing any elbow just before the pump. This helps ensure a smooth flow into the pump and maintains adequate NPSHa.
Let’s get started!

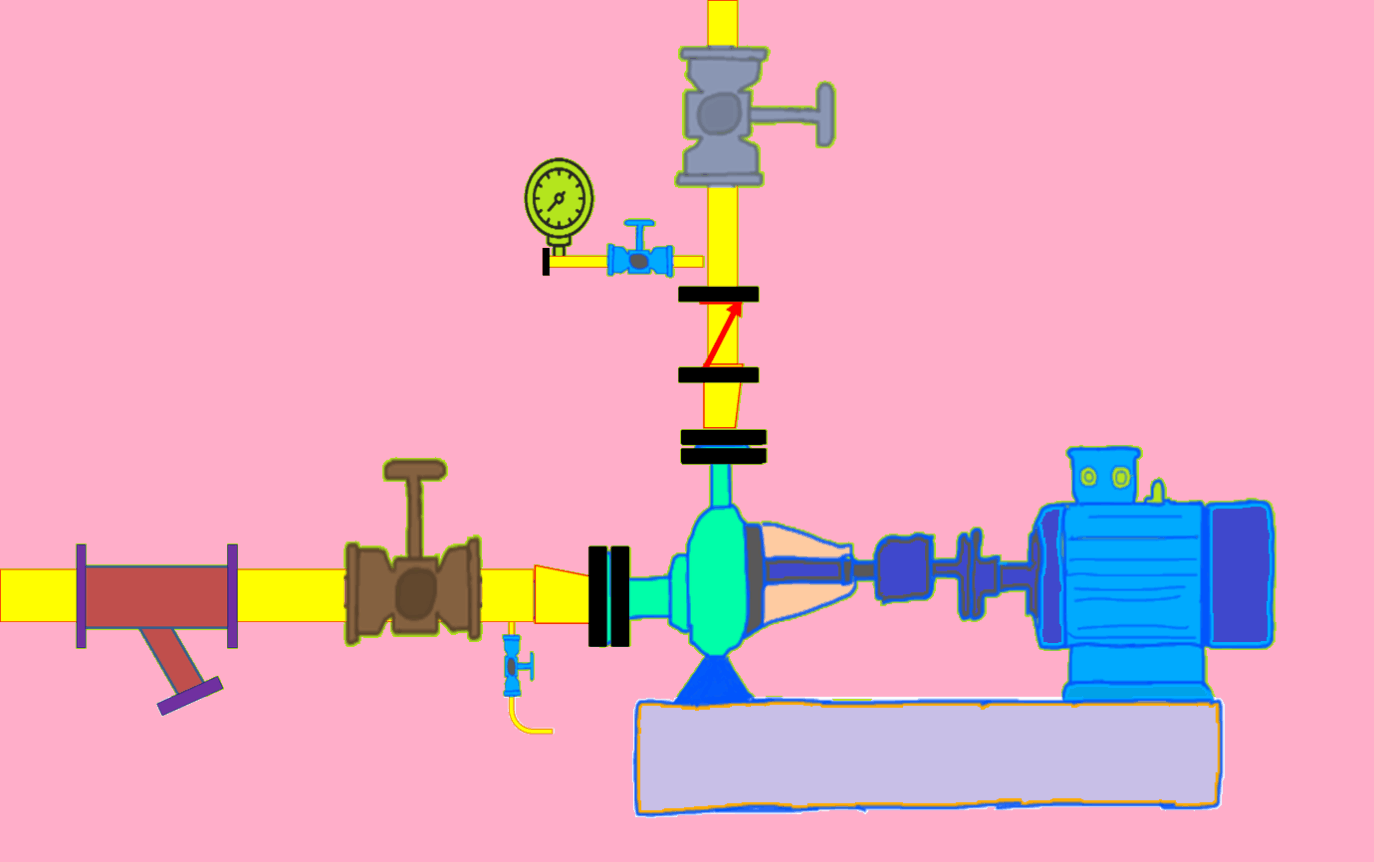

Centrifugal Pump Suction And Discharge Piping Arrangement
Let’s discuss one by one. We’ll start with the suction piping design first.
Why Proper Suction Piping Design Is Important
In any centrifugal pump suction piping design, the main goal is to deliver liquid to the pump with minimal disturbance and losses. The pump is not a vacuum-creating device. It relies on atmospheric pressure (or positive pressure in pressurized systems) to push the liquid into the pump casing. If the suction piping is poorly designed, the pump may face issues like cavitation, air binding, or loss of prime.
Key reasons why proper suction piping is important:
- To maintain adequate Net Positive Suction Head Available (NPSHa).
- To reduce pressure drops and frictional losses.
- To prevent turbulence and air entrainment.
- To ensure stable, continuous flow to the pump inlet.
Failing to meet these requirements can result in serious performance issues, leading to pump damage and downtime.
Example Reference: As per our earlier example, the proper arrangement of suction piping with a straight run and eccentric reducer helps maintain NPSHa and minimizes the risk of cavitation.

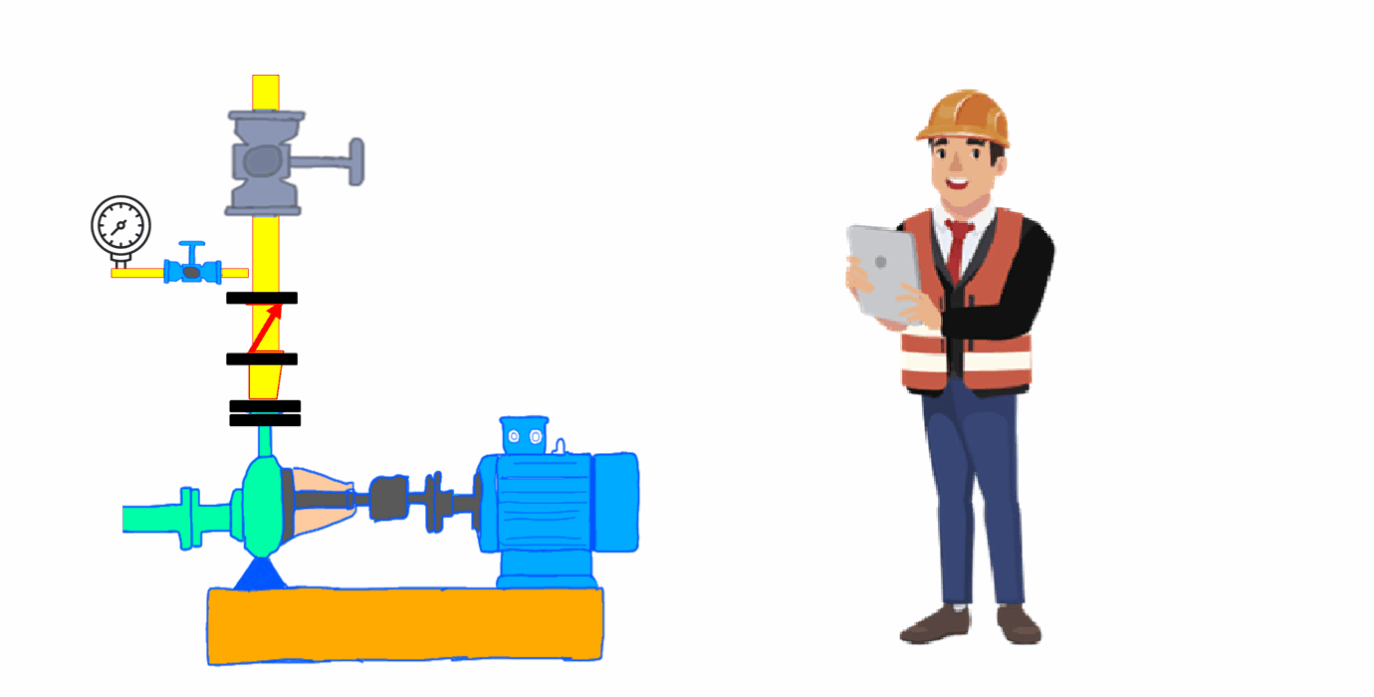

Pump Discharge Pipe Fittings
Pump discharge piping typically includes several key fittings to ensure safe, efficient flow. Common fittings are:
- Check Valve (NRV): Prevents backflow when the pump stops.
- Isolation Valve: Allows maintenance without draining the system.
- Reducers: Often concentric, to match pump outlet to line size.
- Pressure Gauge/Instrumentation Taps: For monitoring discharge pressure.
Centrifugal Pump Suction Piping Design Guidelines
Good centrifugal pump suction piping design involves the following principles:
- Use a straight run of pipe before the pump suction nozzle. A minimum of 5 to 10 times the pipe diameter is recommended.
- Avoid sharp elbows or tees directly before the pump. These create turbulence.
- Use eccentric reducers (flat side up) when transitioning pipe sizes to avoid air pockets.
- Keep the pipe diameter equal to or one size larger than the suction nozzle to minimize velocity and friction loss.
- Install a suction strainer only if necessary, and ensure it has a large open area to avoid clogging.
- Avoid high points in the suction line that can trap air.
- If using a flooded suction, ensure the suction line remains full of liquid at all times.
- Ensure proper support to avoid pipe strain on the pump nozzle.
These practices ensure that the liquid enters the pump smoothly and with sufficient pressure.
Why Proper Discharge Piping Design Is Important
The role of discharge piping is to transport the pressurized liquid from the pump to the destination point efficiently. Poorly designed centrifugal pump discharge piping can lead to high-pressure losses, pipe vibration, and water hammer effects.
Importance of proper discharge piping design:
- To prevent excessive resistance that may overload the pump.
- To ensure proper flow rate and system delivery.
- To reduce vibration and noise in the system.
- To protect the pump during start-up and shutdown (with check and isolation valves).
Discharge piping impacts the total dynamic head against which the pump must work. Incorrect sizing or poor layout can cause increased energy consumption and even pump failure.
Example Reference: As seen in our example, a properly sized discharge pipe with a check valve and gate valve helps maintain system integrity and prevents reverse flow.

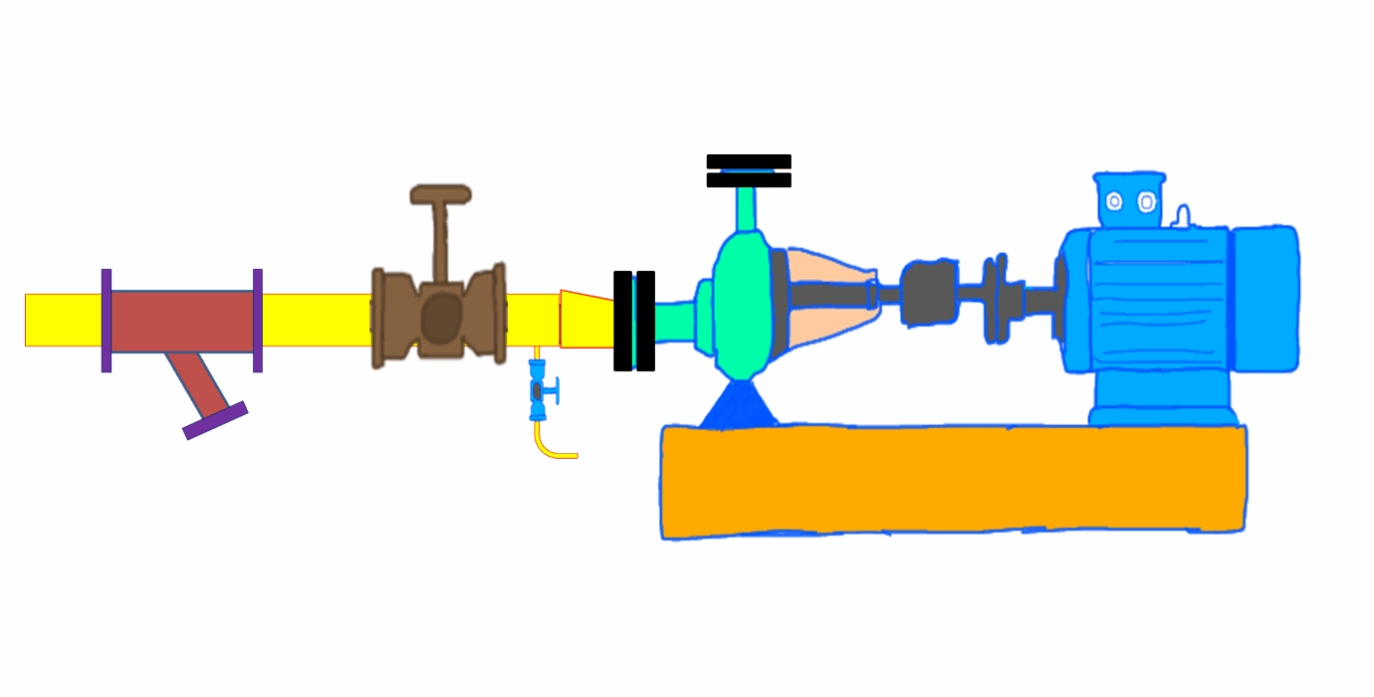

Pump Suction Pipe Fittings
Pump suction piping includes specific fittings to ensure smooth, cavitation-free flow into the pump. Key fittings are:
- Eccentric Reducer (Flat Side Up): Prevents air pockets and maintains full liquid flow.
- Isolation Valve: Enables pump maintenance without draining the suction line.
- Strainer or Filter: Protects the pump from debris and solid particles.
- Drain Valve: Allows removal of fluid during shutdowns or maintenance.
Proper layout ensures stable suction conditions and reliable pump operation.
Centrifugal Pump Discharge Piping Design Guidelines
Key aspects of good centrifugal pump discharge piping design include:
- Use pipe sizing based on system flow rate and allowable head loss.
- Install a check valve to prevent backflow when the pump stops.
- Add an isolation valve (usually a gate or ball valve) for maintenance.
- Use pressure gauges on the discharge line to monitor performance.
- Avoid sudden changes in direction or diameter to reduce turbulence.
- Use flexible connectors or expansion joints if thermal expansion is expected.
- Ensure smooth transitions and sloping to avoid trapped air.
Centrifugal Pump Piping Best Practices
Whether it is suction or discharge, general centrifugal pump piping best practices apply:
- Ensure proper alignment of piping to pump flanges.
- Avoid applying pipe strain to pump nozzles.
- Use pipe supports and anchors appropriately.
- Clean piping system thoroughly before commissioning.
- Ensure vent and drain facilities are present.
These simple practices help extend the pump’s life and maintain system efficiency.
Recently Asked Questions From My Students
Why do we use an eccentric reducer in suction piping?
Answer
Eccentric reducers (flat side up) are used to prevent air pockets from forming in the suction line, which could lead to cavitation. This orientation ensures a full pipe of liquid entering the pump, promoting smooth flow and protecting the pump.
Can we place an elbow right before the pump suction nozzle?
Answer
It’s not recommended, as it causes turbulence. Turbulent flow at the pump suction can lead to uneven loading on the impeller and reduce efficiency. Always try to maintain a straight run of pipe before the suction inlet for better flow stabilization.
What happens if NPSHa is less than NPSHr?
Answer
Cavitation will occur, which can damage the impeller and drastically reduce pump performance. It leads to noise, vibration, and eventually erosion of pump components, causing unplanned downtime and maintenance.
Is it necessary to install a check valve on the discharge side?
Answer
Yes, it prevents reverse flow when the pump is stopped and protects both the pump and the piping system. It also ensures the system remains primed and avoids pressure surges that could damage equipment.
Can we use the same pipe size for suction and discharge?
Answer
It depends on the system. Suction piping is often one size larger to reduce fluid velocity and ensure sufficient NPSHa. This design minimizes friction losses and helps maintain stable flow into the pump.
Conclusion
To summarize, proper centrifugal pump suction and discharge piping is not just about connecting pipes. It’s about enabling smooth, efficient, and reliable operation of the pump and the system it serves. Suction piping must deliver fluid with minimal disturbance and adequate pressure, while discharge piping must carry pressurized fluid without unnecessary losses or damage to system components.
When both suction and discharge piping are designed with attention to detail, the result is a high-performing and low-maintenance pumping system.
