3 Common shaft coupling misalignment types with causes and diagnosis

Shaft Coupling Misalignment

Hi, and welcome to another insightful article! Thank you for taking the time to join us today. We’re excited to dive into a crucial topic: shaft coupling misalignment. If you’ve enjoyed our previous content, we’re confident you’ll love this one too.

In this article, we’ll explore the concept of shaft coupling misalignment in detail. We’ll cover:

• What shaft coupling misalignment means.
• The different types of misalignment.
• Detailed explanations of each type, including when they occur.
• Essential precautions to prevent misalignment.
• Practical solutions to address misalignment issues.
• Pro tips to enhance your maintenance practices.
• Answers to some frequently asked questions (FAQs).

By the end of this article, you’ll have a solid understanding of how to identify, prevent, and resolve shaft coupling misalignment, ensuring your machinery operates at peak efficiency.

Outcome of This Article

After reading, you’ll be equipped to:

• Recognize the signs of shaft coupling misalignment.
• Understand the root causes and consequences of misalignment.
• Apply effective alignment techniques and preventive measures.
• Improve the reliability and lifespan of your mechanical systems.

Let’s get started!

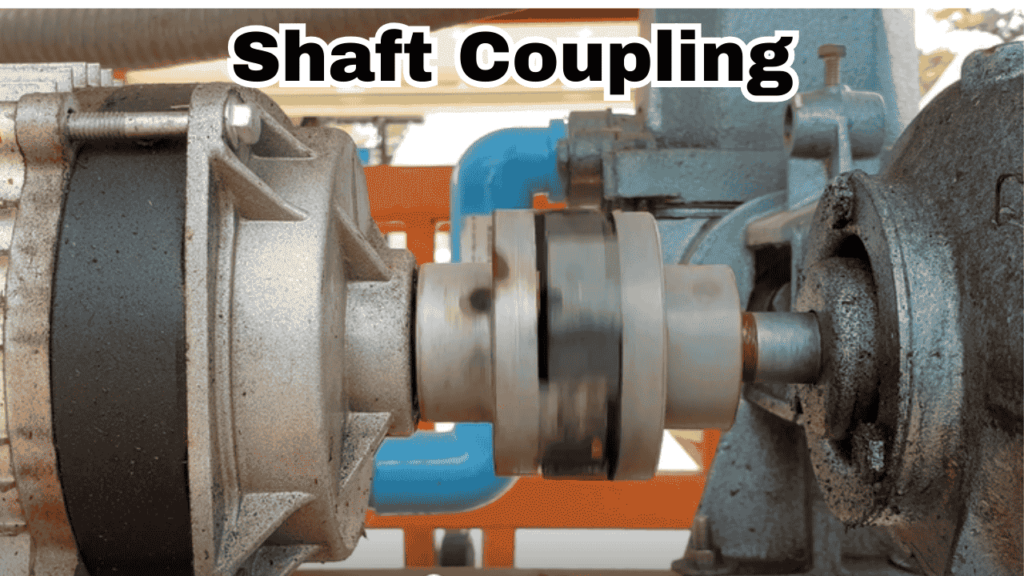

What is shaft Coupling Misalignment?

Shaft coupling misalignment or misaligned shaft coupling is a condition where two shafts connected by a coupling are not correctly aligned with each other. This misalignment disrupts the smooth transfer of rotational power between the shafts, leading to inefficiencies in the mechanical system. It occurs when the shafts fail to maintain their intended position due to factors such as improper installation, uneven foundation settling, or operational wear and tear.

When misalignment occurs, it places additional stress on the coupling and associated components like bearings and seals, causing excessive vibration, noise, and energy losses. Over time, this can lead to premature failure of machinery and increased maintenance costs. Proper alignment ensures efficient power transfer, reduces wear, and extends the lifespan of the equipment, making it a critical aspect of mechanical system maintenance.

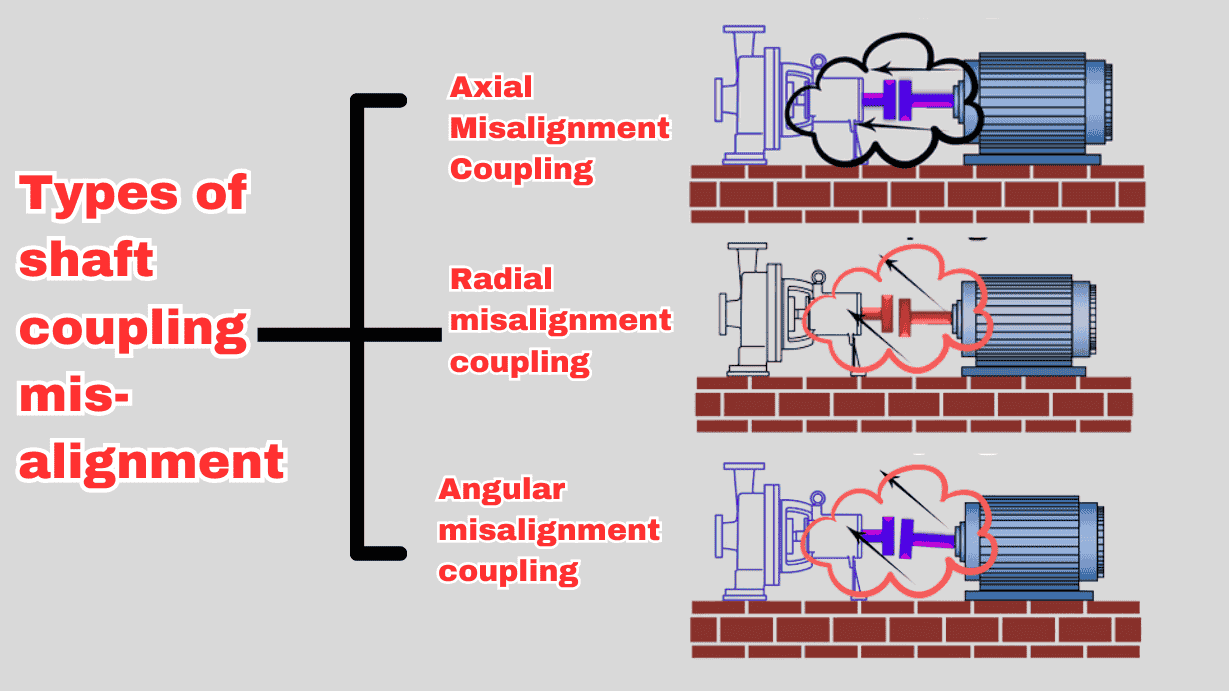

Types of shaft coupling misalignment

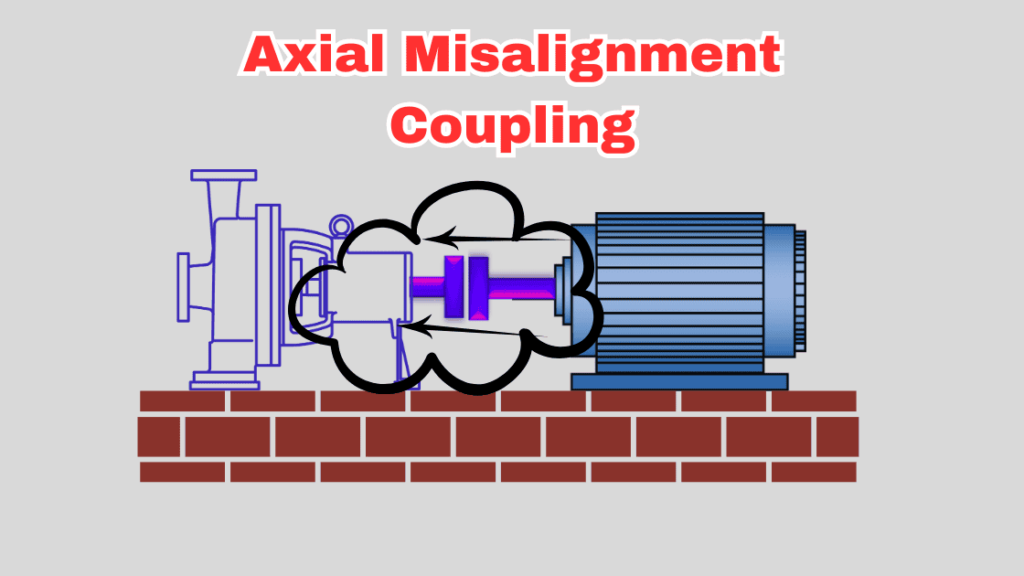

Axial Misalignment Coupling

What is Axial Misalignment Coupling?

Axial misalignment occurs when the shafts of a coupling are not aligned along the same axis, causing one shaft to move forward or backward relative to the other. This type of misalignment can result from thermal expansion, wear, or installation errors, leading to uneven load distribution and potential damage to the coupling and connected machinery.

Causes of Axial Misalignment Coupling

Several factors can cause axial misalignment, including:

• Thermal Expansion: Changes in temperature can cause parts of the coupling to expand or contract, resulting in axial displacement.
• Improper Installation: Incorrect alignment during installation can lead to axial misalignment, especially if the shafts are not positioned correctly in relation to each other.
• Wear and Tear: Over time, coupling components such as bushings, bearings, or the coupling itself may wear out, resulting in axial misalignment.
• Misaligned Bearings: When bearings supporting the shafts are misaligned or worn, they can cause axial movement in the coupling.
• Manufacturing Defects: In rare cases, defects in the coupling or shaft can lead to misalignment during operation.

Diagnosis of Axial Misalignment Coupling

Diagnosing axial misalignment typically involves several methods:

• Visual Inspection: Check for signs of uneven wear, unusual vibrations, or displacement of the coupling components.
• Dial Indicator Measurement: Using a dial indicator or laser alignment tool can provide precise measurements of any axial displacement between shafts.
• Vibration Analysis: Vibration testing can help detect irregularities in the system caused by axial misalignment.
• Thermal Imaging: Differences in temperature across the coupling may indicate thermal expansion, which could contribute to axial misalignment.
• Alignment Tools: Use shaft alignment tools to measure misalignment accurately and make necessary adjustments.

Angular misalignment coupling

What is Angular Misalignment Coupling?

Angular misalignment occurs when two shafts are not aligned along the same axis, causing them to form an angle with each other. This misalignment leads to uneven loading of the coupling, which can result in excessive wear, vibration, and potential failure of the components. It differs from parallel misalignment in that it involves an angular displacement between the shafts, rather than just an offset along their axis.

Causes of Angular Misalignment Coupling

Angular misalignment can arise from various factors, including:

• Improper Installation: Incorrect shaft positioning during installation can cause angular displacement between the shafts, leading to misalignment.
• Shaft Deformation: Over time, shafts may bend or shift due to external forces or overload, causing them to deviate from their intended angle.
• Wear and Tear: Continuous operation can wear out coupling components, bearings, or shaft supports, resulting in angular misalignment.
• Thermal Expansion: Uneven heating or cooling of the equipment can cause parts of the shaft or coupling to expand or contract, leading to angular misalignment.
• Foundation Movement: Shifting or settling of the equipment foundation may cause misalignment between the shafts.

Diagnosis of Angular Misalignment Coupling

Diagnosing angular misalignment involves several inspection techniques:

• Visual Inspection: Look for uneven wear, vibration, or other signs that indicate angular displacement.
• Dial Indicator Measurement: Using a dial indicator or similar precision tools, measure any angular misalignment between the shafts to detect the displacement.
• Vibration Analysis: Excessive vibration is often an indication of angular misalignment. Vibration analysis tools can identify unusual patterns caused by this misalignment.
• Laser Alignment Tools: These tools provide high-precision measurements to detect angular misalignment between the shafts.
• Alignment Fixtures: Special alignment fixtures can be used during installation or maintenance to check and correct angular misalignment between the shafts.

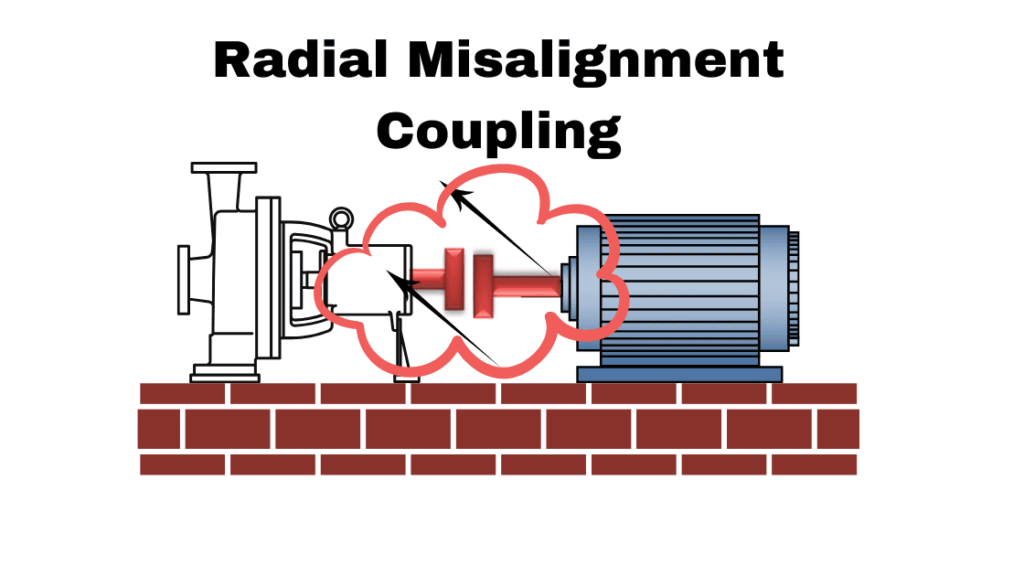

Radial Misalignment Coupling

What is Radial Misalignment Coupling?

Radial misalignment occurs when the shafts of a coupling are not aligned along the same radial plane, meaning the axes of the shafts are offset. This misalignment causes the coupling to experience uneven forces, resulting in excessive stress on the components. Radial misalignment can lead to premature wear, vibration, noise, and even coupling failure if left unaddressed.

Causes of Radial Misalignment Coupling

Several factors can contribute to radial misalignment, including:

• Incorrect Installation: During installation, shafts may be positioned incorrectly, leading to radial misalignment.
• Shaft Deflection: When shafts bend under load or pressure, it can cause a radial offset, especially if the coupling is under heavy or uneven stress.
• Worn Coupling Components: Over time, wear on the coupling components, such as bearings or sleeves, can cause the shafts to shift radially out of alignment.
• Improper Shaft Support: If the shafts are not supported adequately by bearings or other structural elements, radial misalignment may occur due to lack of stability.
• Thermal Expansion: Uneven expansion of coupling components due to temperature changes can lead to radial misalignment.
• Manufacturing Defects: In some cases, manufacturing issues or faults in the shaft or coupling can lead to radial misalignment during operation.

Diagnosis of Radial Misalignment Coupling

To diagnose radial misalignment, the following methods can be used:

• Visual Inspection: Check for uneven wear patterns or signs of misalignment, such as excessive vibration or noise from the coupling.
• Dial Indicator Measurement: Use a dial indicator to measure the radial offset between the two shafts to identify the misalignment.
• Vibration Analysis: Monitor vibrations during operation, as radial misalignment typically leads to distinctive vibration patterns that can be detected by vibration sensors.
• Laser Alignment Tools: Laser alignment equipment can precisely measure the radial displacement between the shafts and identify any misalignment.
• Alignment Checks: Manual alignment checks or using alignment tools can confirm if the shafts are radially aligned.

Pro Tips to Avoid and Diagnosis Misaligned shaft Coupling

As per my experience, avoiding shaft coupling misalignment comes down to a few key practices. First, I always ensure proper installation by using the right alignment tools, like laser alignment devices or dial indicators. This has helped me prevent all types of misalignment—whether axial, parallel, or radial—right from the start. Regular maintenance checks are another must-do for me. I make it a point to inspect couplings, shafts, and bearings for any signs of wear or misalignment before they become major issues. One thing I’ve learned is that vibration monitoring is crucial. If I notice any abnormal vibrations, it’s usually a red flag for misalignment, and I jump on diagnosing it quickly. I also pay attention to thermal expansion, especially when working in environments with fluctuating temperatures, as it can cause axial or radial misalignment over time. Proper shaft support is essential too. Using high-quality bearings has saved me from dealing with unnecessary radial misalignment. For quick diagnosis, I rely on precision tools like dial indicators or laser alignment systems—they’ve helped me spot misalignment fast and accurately. Lastly, I always avoid overloading the system. Exceeding the rated capacity can easily lead to misalignment. Following these steps, along with manufacturer guidelines, has really helped me keep things running smoothly.

Recently Asker Q & A

Conclusion

Aspect	Key Takeaways
What is Shaft Coupling Misalignment?	Misalignment occurs when two shafts connected by a coupling are not correctly aligned, disrupting the smooth transfer of rotational power.
Types of Misalignment	1. Axial Misalignment: Shafts are misaligned along the axis. 2. Parallel Misalignment: Shafts are not parallel to each other. 3. Radial Misalignment: Shafts are offset in the radial plane.
Common Causes of Misalignment	Improper installation, wear and tear, thermal expansion, shaft deformation, and foundation movement are common causes of misalignment.
Diagnosing Misalignment	Tools like dial indicators, laser alignment tools, vibration analysis, and thermal imaging can help in diagnosing the type of misalignment.
Prevention Tips	Proper installation, regular maintenance checks, vibration monitoring, attention to thermal expansion, and avoiding overloading are effective prevention methods.
Pro Tips for Maintenance	Use precision alignment tools, check for wear and tear regularly, monitor vibrations, ensure proper shaft support, and follow manufacturer guidelines.
Key Outcomes	Understanding misalignment signs, applying effective alignment techniques, and improving system reliability and lifespan.

References

1. D. R. McCauley, “Shaft Alignment Handbook,” 3rd Edition, CRC Press, 2017.
   This book provides comprehensive insights into shaft alignment, including coupling misalignment, its causes, and diagnostic methods.
2. C. R. Burkhardt, “Mechanical Shaft Alignment: A Practical Guide,” 2nd Edition, CRC Press, 2014.
   This guide is focused on practical approaches to diagnosing and preventing misalignment, with detailed explanations of various types of misalignment.
3. M. A. Horne, “Vibration Monitoring for Shaft Misalignment,” Journal of Sound and Vibration, 2015.
   An academic paper discussing how vibration analysis can help detect misalignment in mechanical systems.
4. SKF, “Shaft Alignment: A Key to Optimal Performance,” SKF Technical Information, 2018.
   A technical guide from SKF that offers in-depth coverage on shaft alignment and coupling maintenance, including axial, radial, and parallel misalignment.
5. GE Energy, “Coupling Misalignment and Its Effects on Equipment,” GE Power Services, 2020.
   A reference document from GE Energy explaining the effects of misalignment on machinery and the importance of proper coupling alignment.
6. SME, “The Effect of Misalignment on Couplings,” Society of Manufacturing Engineers, 2019.
   A technical paper discussing the effect of various types of misalignment on mechanical couplings and the necessary corrective actions.
