Water ejectors, also known as jet ejectors or eductors, are simple yet highly effective devices used across various industries for creating vacuum, pumping fluids, or mixing substances using the kinetic energy of a motive fluid — in this case, water. In this article, we will explore the working principle of a water ejector, understand its construction and application, discuss the Baroulli equation that governs its behaviour, and weigh its pros and cons.

What is a water ejector?

A water ejector is a mechanical device that uses high-pressure water as the motive fluid to entrain and transport another fluid (liquid, gas, or vapour). It operates based on the Venturi effect, where a fluid’s pressure drops as it passes through a constricted section of pipe, creating suction capable of drawing in secondary fluid.

Water ejectors do not contain any moving parts, making them robust and easy to maintain. These devices are widely used in applications such as vacuum generation, gas compression, wastewater treatment, desalination, chemical processing, and ship ballast operations.

Why Use a Water Ejector?

Water ejectors are selected over mechanical vacuum pumps or compressors in many cases due to several reasons:

• Simplicity of operation: No moving parts mean less maintenance.
• Cost-effectiveness: Lower initial and operational costs compared to mechanical systems.
• Resistance to corrosion: Can be constructed from corrosion-resistant materials suitable for aggressive media.
• Compact design: Ideal for remote or space-limited applications.
• Handling of wet or contaminated gases: Suitable where conventional pumps would fail.

Construction of a Water Ejector

A water ejector typically consists of three main sections:

1. Motive Nozzle (Converging section): Where high-pressure water enters and accelerates to a high velocity.
2. Mixing Chamber (Throat): The low-pressure zone where suction is created and entrained fluid mixes with the motive fluid.
3. Diffuser (Diverging section): Where the mixed fluid slows down, converting velocity into pressure for discharge.

Some ejectors may also have a suction chamber or multiple stages depending on the vacuum or flow requirements.

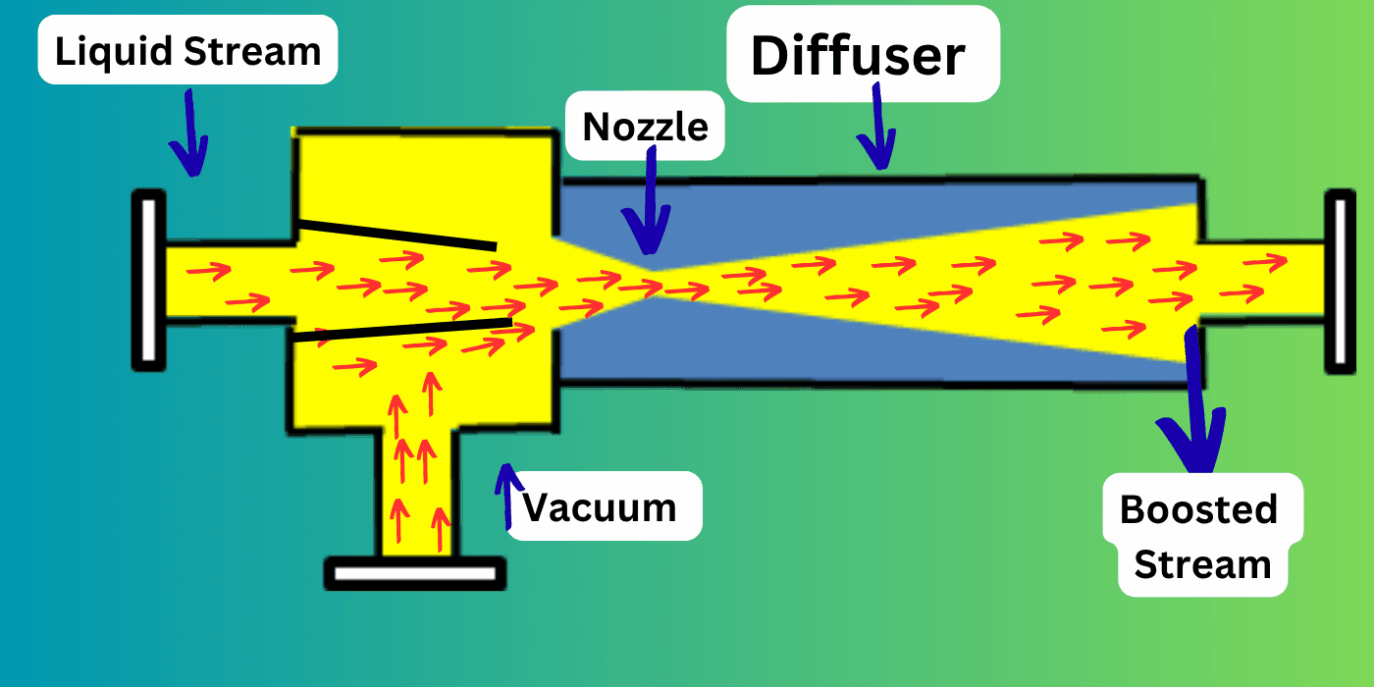

How Does a Water Ejector Work?

The working of a water ejector can be broken down into a series of fluid dynamic interactions:

1. High-pressure water enters the nozzle and is accelerated into a high-velocity jet. This transformation reduces the pressure of the water jet significantly.
2. The pressure drop creates suction at the mixing chamber inlet. This allows a secondary fluid (gas, vapour, or liquid) to be drawn in from the process system.
3. The two streams mix in the throat section. The kinetic energy of the water jet is transferred to the entrained fluid.
4. The mixed stream enters the diffuser, where the flow velocity decreases, and some of the kinetic energy is recovered as pressure. This results in a pressurised discharge.

This principle can be used for both vacuum generation (e.g., in condensers) and for pumping applications (e.g., transporting sludge or chemical mixtures).

Water Ejector Working Principle: Bernoulli’s Equation

The working principle of the water ejector is governed by the Bernoulli equation, which relates pressure, velocity, and height in a flowing fluid.

In a simplified form:

P + ½ρv² + ρgh = constant

Where:

• P = Pressure
• ρ = Density of the fluid
• v = Velocity of the fluid
• g = Acceleration due to gravity
• h = Height above reference point

In the ejector nozzle, pressure energy (P) is converted into kinetic energy (½ρv²), leading to a drop in static pressure. This pressure drop creates a vacuum, drawing in the secondary fluid.

As the motive and entrained fluids mix, the resulting momentum causes further mixing, and the diffuser recovers some pressure by slowing the flow.

Note: While Bernoulli’s equation assumes incompressible and frictionless flow, in real applications, energy losses and compressibility (for gases) are considered using empirical coefficients and CFD simulations.

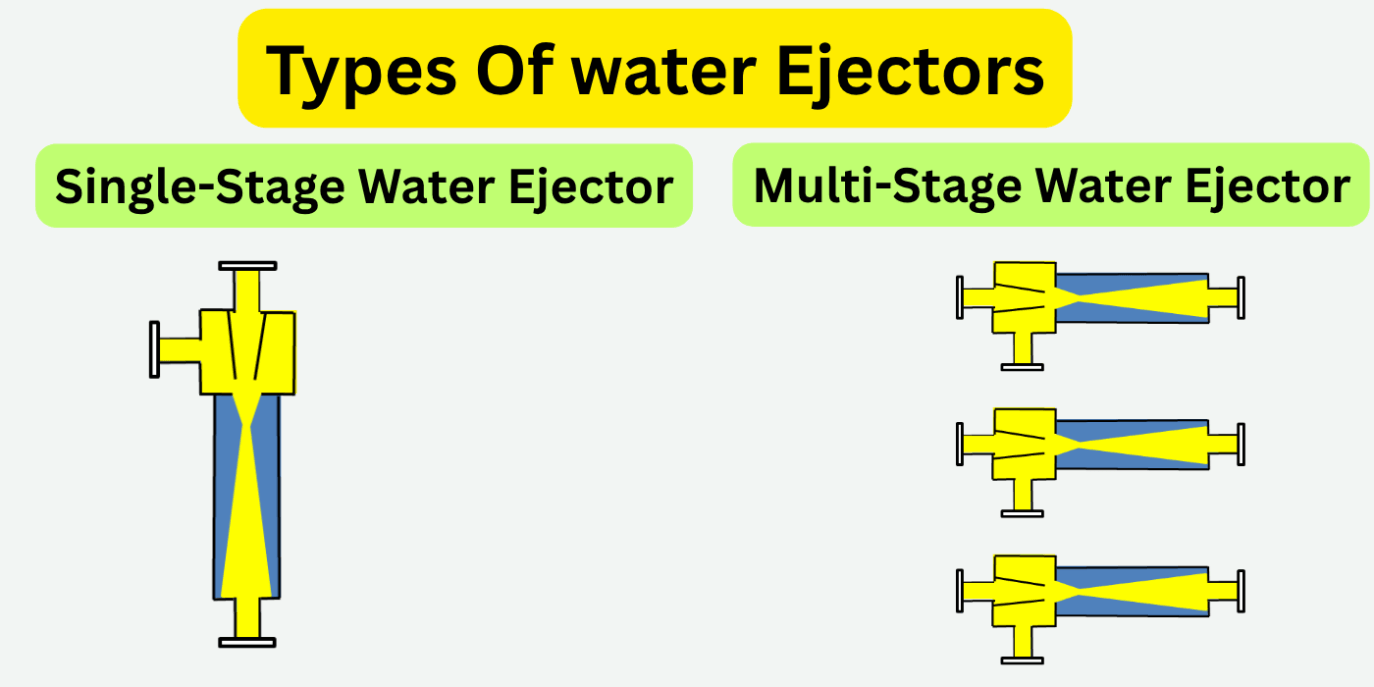

Types Of water Ejectors

There are two types of water ejectors.

Single-Stage Water Ejector

A single-stage water ejector consists of one motive nozzle, a mixing chamber, and a diffuser. High-pressure water enters the nozzle, creating a vacuum that draws in the secondary fluid. This type is simple, compact, and suitable for applications where only a moderate vacuum or pressure lift is required. It is commonly used in small-scale vacuum systems, cooling water circulation, and basic fluid transfer tasks where efficiency and low maintenance are key priorities.

Multi-Stage Water Ejector

A multi-stage water ejector uses two or more ejectors arranged in series to achieve higher vacuum levels or greater suction capacity. Each stage reduces the pressure further, and intercondensers may be used between stages to condense entrained vapors and improve performance. This setup is ideal for power plants, chemical processing units, and industries that require deep vacuum or large volume handling. Though more complex, multi-stage systems are highly effective for continuous, heavy-duty operations.

Water ejector system

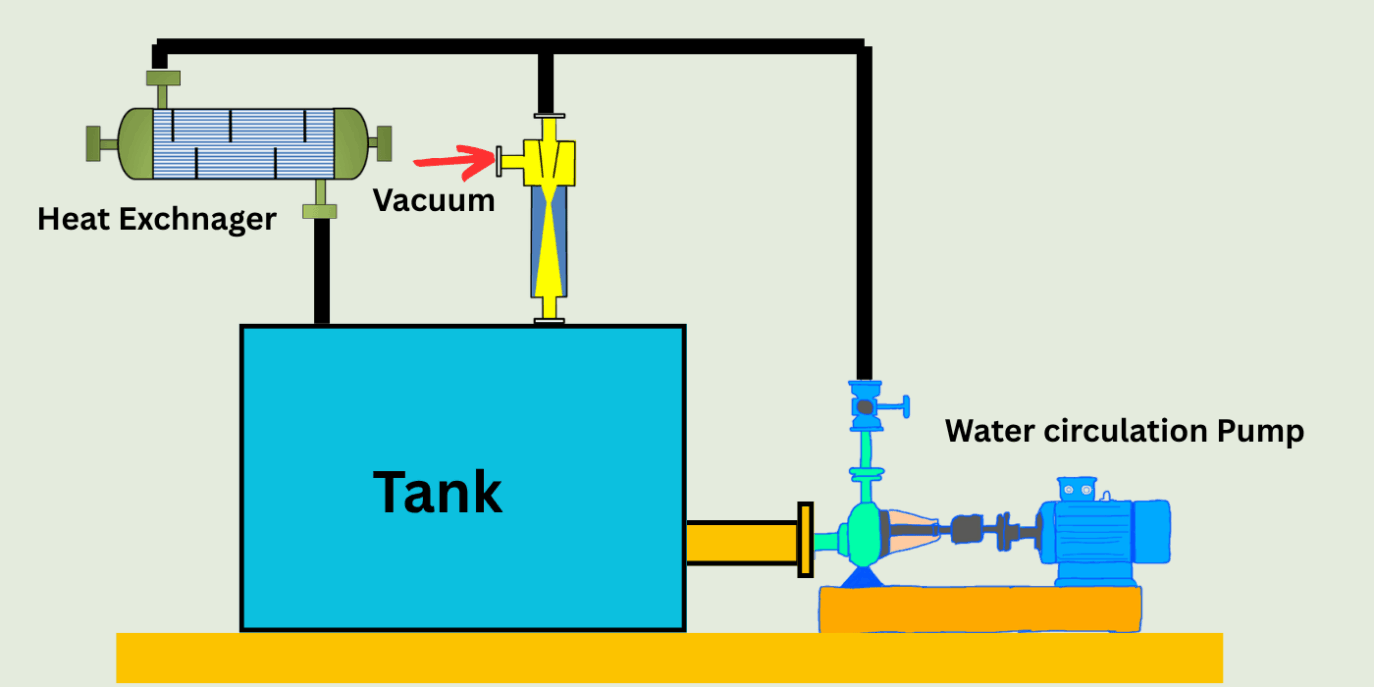

Single Stage Simple Water Ejector System.

As you can see in the system diagram, this is a closed-loop water ejector system used for creating vacuum and circulating fluid through a heat exchanger. Here’s how each component functions within the system:

1. Water Circulation Pump
   Located at the bottom right, the pump draws water from the tank and delivers it at high pressure to the ejector. This high-pressure water acts as the motive fluid that powers the ejector.
2. Water Ejector (Jet Ejector)
   At the top center of the system, the ejector receives high-pressure water from the pump. Inside the ejector, this water accelerates through a nozzle, creating a vacuum. This vacuum draws vapor or gas from the tank and pulls it through the ejector, entraining it with the motive water stream.
3. Vacuum Line
   The line connected to the top of the tank leads to the suction side of the ejector. Due to the vacuum created, this line continuously removes gases or vapors from the tank, maintaining low pressure inside it.
4. Heat Exchanger
   Connected to the tank, the heat exchanger allows for thermal regulation of the fluid. It helps in either condensing vapors drawn into the tank or cooling the circulating water before it’s returned to the system.
5. Tank
   The central vessel in the system holds the process fluid. It is under partial vacuum due to the ejector’s action, which is useful in processes like distillation, evaporation, or vacuum filtration.

How the System Works Together

• The water pump circulates water from the tank and sends it to the ejector at high pressure.
• The ejector uses this pressurized water to generate a vacuum, drawing gases or vapors from the tank.
• The vapor or gas is carried with the motive water to discharge (not shown in the diagram, assumed to be an outlet line).
• Simultaneously, the heat exchanger helps control the tank’s temperature as part of the overall process requirement.

Key Features

• No moving parts in the ejector, making it maintenance-free.
• Continuous vacuum generation without mechanical compressors.
• Water is recirculated, improving efficiency and reducing waste.
• Compact and ideal for vacuum-based liquid processing systems.

Applications of Water Ejectors

Water ejectors find application in several domains, including:

• Vacuum generation in steam condensers, distillation units, and reactors
• Gas evacuation from vessels or pipelines
• Pumping slurries or fluids from deep pits
• Mixing chemicals in water treatment or process plants
• Cooling and aeration in fish ponds or aquaculture
• Emergency bilge pumping in marine systems

They are particularly useful in hazardous or explosive environments due to the absence of electrical or moving parts.

Advantages of Water Ejector

Water ejectors offer multiple benefits in industrial applications:

• No moving parts: Resulting in less wear, low maintenance, and longer operational life.
• Robust design: Can handle solid-laden, corrosive, or high-temperature fluids.
• Low capital and operating cost: Especially when motive water is readily available.
• Compact and lightweight: Suitable for installation in remote or space-constrained areas.
• Safe operation: No electrical connections or sparks, suitable for hazardous areas.
• Flexible operation: Can operate in wide pressure and flow ranges.
• Immediate start/stop: No need for warm-up or cooldown periods.

Disadvantages of Water Ejectors

Despite their advantages, water ejectors also have limitations:

• Low energy efficiency: A large volume of high-pressure water is required for relatively small suction or lift performance.
• Dependent on motive pressure: If motive water pressure fluctuates, performance drops.
• Difficult to control precisely: Flowrate and vacuum levels are not easily adjustable.
• High water consumption: Continuous operation requires a constant supply of water.
• Suction limitations: Not suitable for very deep suction lifts compared to mechanical pumps.
• Mixing of fluids: In some cases, separation is required after discharge.

Water Ejector Design Considerations

Designing a water ejector involves the following key parameters:

• Motive fluid pressure and flowrate
• Suction fluid characteristics (type, pressure, temperature)
• Required discharge pressure
• Mixing ratio and entrainment ratio
• Material compatibility and corrosion resistance
• Backpressure conditions and downstream piping

Advanced CFD modelling or performance curves based on empirical testing are used for fine-tuning the design, especially for multistage systems.

Recently Asked Q & A

Conclusion

Water ejectors are reliable and low-maintenance devices used in a wide variety of applications where vacuum generation, fluid pumping, or gas entrainment is required. They work on a simple yet powerful principle of converting high-pressure water into kinetic energy to create suction and mix with other fluids.

Despite their lower efficiency compared to mechanical pumps, their simplicity, robustness, and ability to operate without electrical power make them a preferred solution in many challenging environments.

Understanding the Bernoulli equation helps grasp the physics behind their operation, while awareness of their pros and cons is essential for selecting the right ejector for your process.
